Scientific Solar Monitoring System
Scientific Solar Monitoring System
Kipp & Zonen Scientific Solar Monitoring Station for high accuracy measurements of direct, diffuse and global irradiance according BSRN guidelines.

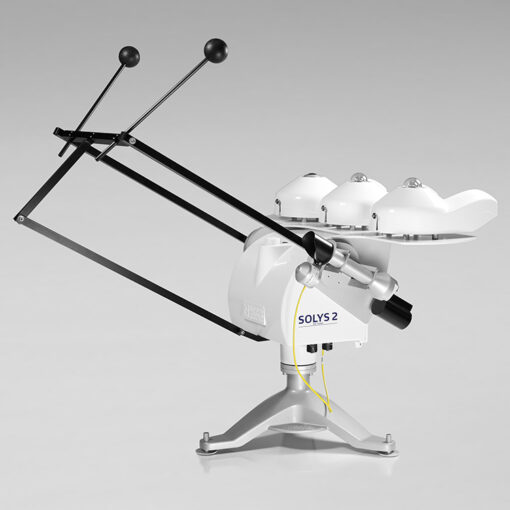

The heart of the system is a high precision fully automatic sun tracker with mountings for a range of Kipp & Zonen instruments.

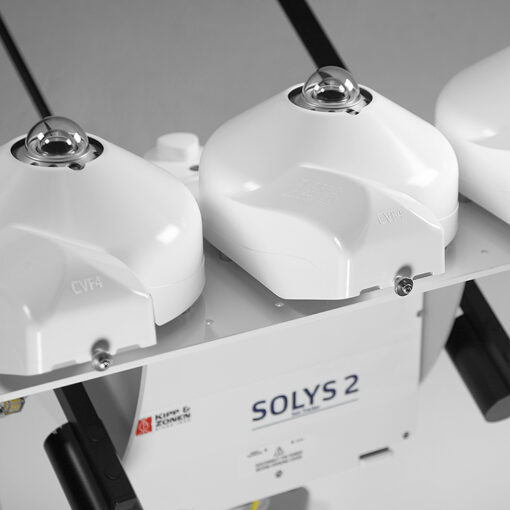

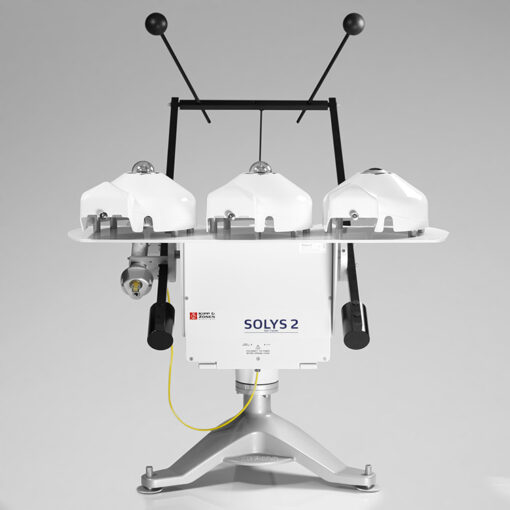

Shown are CHP 1 pyrheliometer for direct radiation and CMP 21 or CMP 22 pyranometers for diffuse and global radiation together with CGR 4 pyrgeometer for far infrared measurements.
Both the 2AP and the SOLYS 2 trackers fulfill the accuracy requirements of the BSRN guidelines.

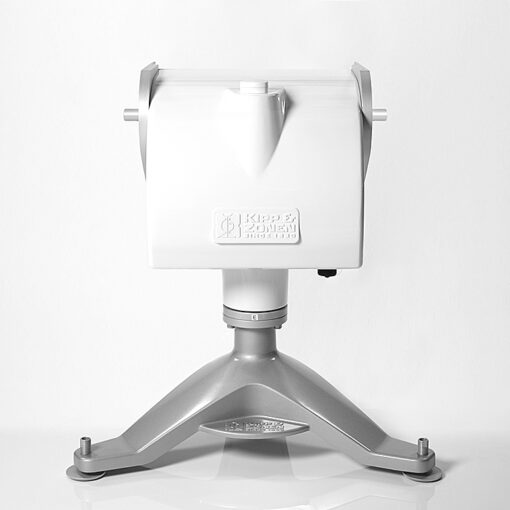

The rugged and distinctive cast aluminum housing has an integrated tripod stand with leveling feet, azimuth adjustment and provision for tie-down bolts. A side plate with zenith adjustment and mountings for a Kipp & Zonen CHP1 pyrheliometer is included.

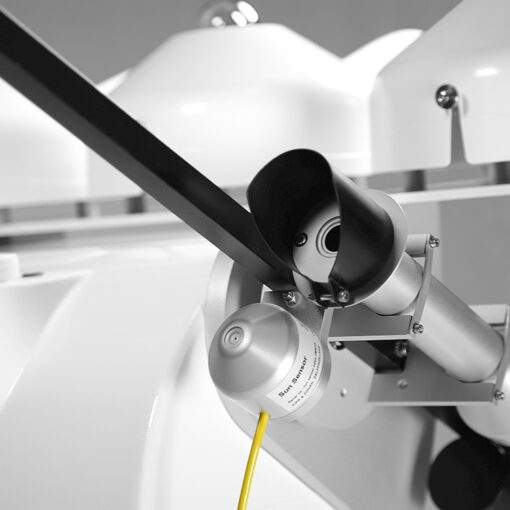

Scientific Solar Monitoring System does not suffer from internal clock drift because the time is regularly updated by the GPS receiver. If the tracker is correctly leveled and aligned, and mounted on a solid and stable support, it will continue to point accurately. An optional sun sensor is available for active tracking, to correct for motion in a support affected by changing environmental conditions.
Scientific Solar can operate from AC or 24 VDC power, both inputs are available as standard. The operating temperature range from – 20 °C to + 50 °C on DC power can be extended to -40 °C on AC power using the standard internal heater.
Scientific Solar brings to the sun tracker market distinctive design, innovative features, performance, quality and unprecedented ease of use – all at a surprisingly affordable price.
The design of the Scientific Solar sun tracker is based on open source software.
For instructions on the installation please watch this video and don’t forget to read the manual too.
Scientific Solar Monitoring System
- Turnkey systems plus installation possible
- Different configurations up to BSRN quality
- Optimized for CSP, PV or Meteorology
- Complies with ISO 9060 specifications
Specifications
| Pointing accuracy | < 0.1° passive tracking / < 0.02° active tracking (with optional sun sensor) |
| Payload | 20 Kg |
| Power supply | 18 to 30 VDC and 90 to 264 VAC (50/60Hz) |
| Operating temperature range, DC | -20 to + 50 °C |
| Operating temperature range, AC | -40 to +50 °C |
| Mounting base | Tripod stand |
| Dimensions | 50x34x38 cm / 23 kg ( tracker) 5kg (tripod) |
| Communication interface | Ethernet / Web interface |
| Transmission type | Inverted tooth belts |
| Power consumption | 21 W (reduces to 13 W at night) 100 W extra when heater is operating (AC only) |
