LAS MkII ET System – Kipp & Zonen

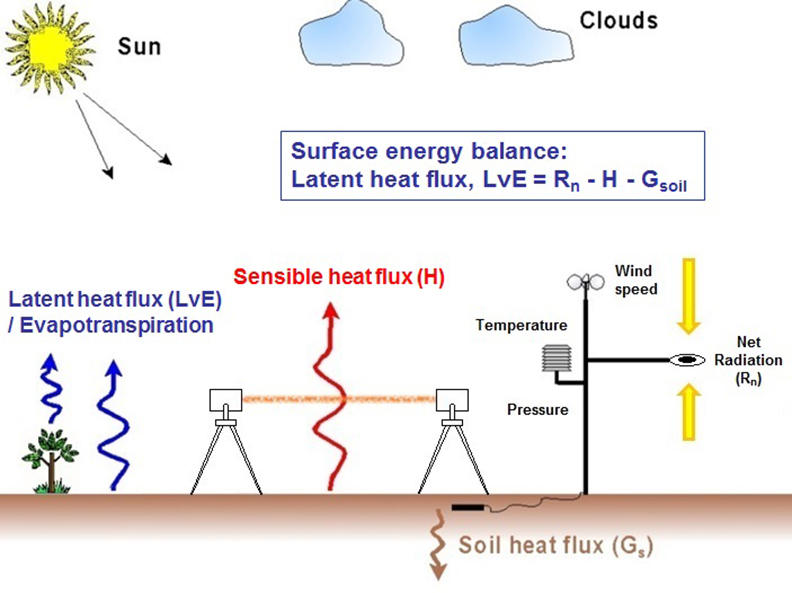

The LAS MkII Evapo-Transpiration (ET) system is a complete solution for monitoring the energy balance within the boundary layer. The system comprises a LAS MkII scintillometer, net radiation sensor, meteorological sensors, data acquisition, and has several telemetry and power supply options.

Hệ thống thoát hơi nước (ET) LAS MkII là một giải pháp hoàn chỉnh để theo dõi sự cân bằng năng lượng trong lớp ranh giới. Hệ thống này bao gồm máy đo ánh sáng LAS MkII, cảm biến bức xạ ròng, cảm biến khí tượng, thu thập dữ liệu và có một số tùy chọn đo từ xa và cung cấp điện.

It is specifically designed for field scale observations of the path average energy fluxes using the scintillometry technique.

Our EVATION® software suite is included as standard to view real-time data numerically and graphically as well as advanced data post-processing. Evation reads the ET system measurement data, but can also use files from from other types of data acquisition systems.

All the instruments and equipment of the LAS MkII ET system are selected and designed to offer easy installation and low maintenance operation.

For a full overview of the available configurations and options, please contact us using the Request Information button.

Specifications

LAS MkII ET System – Kipp & Zonen

Path length	100 m to 1 km (10 cm aperture), 250 m to 4.5 km (aperture 15 cm)
Dimensions	400 x 300 x 240 mm. (LxHxD) 8.5 kg
Wavelength	850 nm
Scintillation bandwidth	10e-17 to 10e-11
Power requirements LAS MkII	12 VDC, 6 W (54 W max. with heaters on)
Data processing	Internal processing of Cn2, sensible heat flux and other parameters. Built-in data logger. GPS time.
Control and display	Integrated display and key-pad or remote via digital interface
Interfaces	Digital RS-232/422, analog output 0 to 2.4 V
Software	EVATION® (instrument control and data analysis suite)
