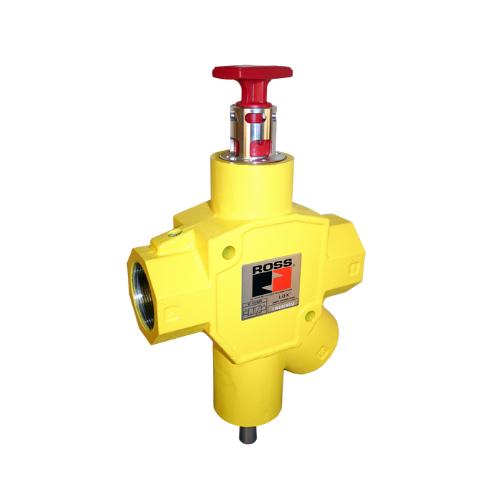

YD1523C9012 Ross Controls Việt Nam

Thông tin liên hệ:

Ms. Như

? nhu@ansgroup.asia

Tập tin:Icon of Zalo.svg – Wikipedia tiếng Việt 0373 238 670

Mô tả

YD1523C9012 Ross Controls Việt Nam

Thông số kỹ thuật:

Series 15 Series High-Capacity
Actuation Manual
Function 3/2
Soft Start Not Included
Construction Spool
Valve Body Material Cast Aluminum
Thread Type G
Inlet Size 2
Outlet Size 2
Exhaust Size 2″
Body Size 2
Mounting In-line
Length 8.2 in (208.3 mm)
Width 3.0 in (76.2 mm)
Height 14.82 in (376.4 mm)
Weight 8.3
Ports 1-2 Flow 40.0 Cv (39000 Nl/min)
Ports 1-2 Flow (Nl/min) 39000
Ports 2-3 Flow 52.0 Cv (51000 Nl/min)
Ports Flow 2-3 (Nl/min) 51000
Ambient Temperature 40 to 175 F (4 to 80 C)
Media Temperature 40 to 175 F (4 to 80 C)
Fluid Media Filtered Air
Operating Pressure 0 to 150 psig (0 to 10 bar)
Poppet/Spool Material Stainless Steel
Seal Material Fluorocarbon
Safety Category Category 1
PL Rating PL c
DGUV Certification No
CE Certification No
EAC Declaration Yes
CSA/UL Certification No
