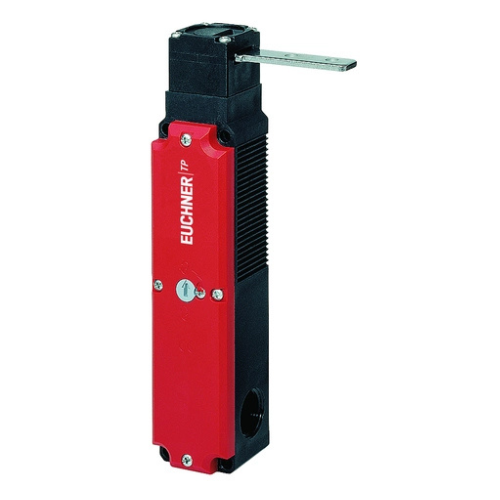

0373 238 670TP3-2131A024M Safety Sensor Euchner Việt Nam
Safety switch TP, cable entry M20 x 1.5, contacts for the door position
- 3 x cable entry M20 x 1.5
- Contacts for the door position
- Auxiliary release
- Closed-circuit current principle
Electrical connection values
| Power consumption | 8 W |
| Connection cross section | 0.34 … 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse voltage Uimp | 2.5 kV |
| Utilization category | |
| DC-13 | 4 A 24 V |
| AC-15 | 4 A 230 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% … +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Connection type | |
| 3 x | M20 x 1.5 |
| Number of door position NC contacts | 1 |
| Number of guard lock monitoring NO contacts | 1 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Extraction force | 20 N |
| Actuating force | 10 N |
