SUV-E is designed and optimized for the measurement outdoors of solar radiation with the same response as a ‘standard’ human skin for susceptibility to damage from sunburn.
This ‘Erythemal’ response is defined by ISO/CIE 17166:2019. From the value of ‘Erythemal’ UV irradiance the Global Solar UV Index can be simply calculated.
UV Index = UVE (W/m2) x 40 m2/W. For example, 0.3 W/m2 of UVE irradiance is equivalent to UV Index 12.

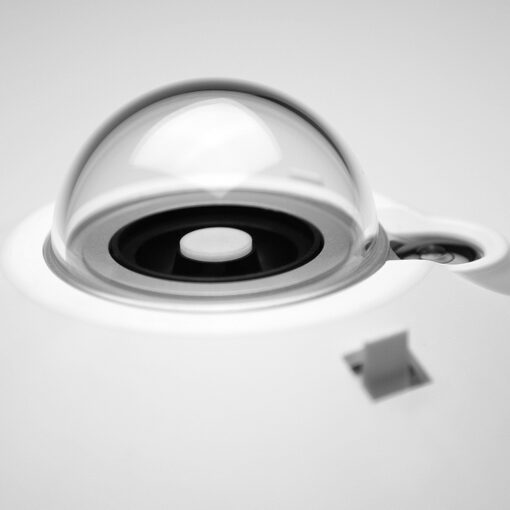

The innovative quartz diffuser provides improved directional response over the CUV5 and SUV5 models and the temperature correction is more accurate. The precision quartz dome is the same as used in our CMP and SMP 22 pyranometers. Unlike SUV5, the SUV-E is only available with a 0 to 1 V analog signal output; there is no 4-20 mA version.
UVE is typically made up of about 17% UVA and 83% UVB for a clear sky around solar noon and it:
is strongly affected by the concentration of ozone high in the atmosphere, ‘holes in the ozone layer’
is considered a strong risk factor for skin cancers and cataracts
is found in man-made sources of UVC radiation (mercury lamps, welding torches)
is used to calculate the UV Index for public health information
SUV-E can typically measure the daily total of UVE irradiance with an uncertainty of 5%.
A data file is supplied with the individually measured spectral response and a matrix of correction factors for variations in the solar zenith angle (air mass) and the atmospheric total ozone column. These can be used to reduce the measurement uncertainty.
Specifications
SUV-E UVE Radiometer – Kipp & Zonen
| Spectral range | ISO/CIE 17166:2019 |
| Output range | 0 to 0.9 W/m² |
| Response time (95%) | 1 s |
| Non-linearity | < 1 % |
| Temperature response (-40 to +70°C) | < 2 % |
| Directional response (up to 70° with 0.9 W/m² beam) | < 2,5 % |
| Supply voltage DC | 5 to 30 V |
| Power consumption | < 55 mW |
| Digital output | 2-wire RS-485, Modbus® RTU |
| Analogue output | 0 to 1 V |
