Linear Guide H01-23×166/80 Linmot Việt Nam
Thông tin liên hệ:
Ms. Như
nhu@ansgroup.asia
0373 238 670
Mô tả

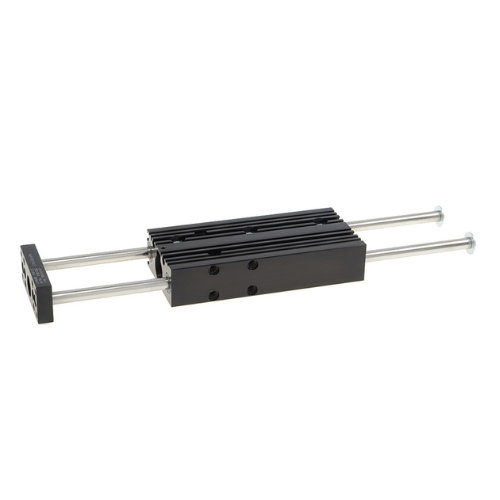

Linear Guide H01-23×166/80 Linmot Việt Nam
H01-23×166/80
H-Guide for P01-23×160, Stroke max 80mm
Article no.: 0150-5017
| Linear Guide with ball bearings: for standard applications under normal environmental conditions. | ||
| Technical Data | ||
| Max. Stroke | 80 | mm |
| Peak Force | 138 | N |
| Continuous Force | 30/46 | N |
| Max. Velocity | 5.2 | m/s |
| Motor Cable | ||
| Supported Drives | ||
| Mechanical Data | ||
| Flange | 79×34 | mm |
| Length | 305.5 | mm |
| Mass (incl. motor) | 1890 | g |
| The matching motors and accessories can be found under the accessories tab. | ||
LIST CODE
| 100% EU Origin | IMI Buschjost/ IMI Norgren Vietnam | Model: 8240200.9100.23050 Valve |
| 100% Germany Origin | Dittmer Vietnam | 1xPT100 B2L Temperature sensor Temperature sensor Einschraub-WTH D0302/8957 Nennlänge 250 x 6 mm Spitze federnd nominal length 250 x 6 mm Spitze federnd/top spring loaded 60 ° abgesetzt auf /stepped to at the top 3 mm Messing/brass 1xPT100 Ohm DIN, fix installed 4-wire – 1 x PT100 EN60751 B 2-Leiter/wire Kopf/Head MA (J) |
| 100% Italy Origin | SIRCA Vietnam | Model: S301E-W Valve DN50, Wafer type PN10-16, Ductile iron, 316, EPDM, manual lever + limit switch box MBX43PN2 |
| 100% Germany Origin | Hans-schmidt Vietnam | Model: DTS-200 Tension Meter |
| 100% Germany Origin | Hans-schmidt Vietnam | Model: DTS-1000 Tension Meter |
| 100% Germany Origin | Hans-schmidt Vietnam | Model: DTX-200 Tension Meter |
| 100% Germany Origin | Hans-schmidt Vietnam | Model: DTX-1000 Tension Meter |
| 100% Germany | Noeding Vietnam | MODEL: PTM82-3310-104G-0530 Digitalmanometer/Thermometer 10bar/100°C Messbereich 1: 0…10,0 bar Analogausgang 4…20 mA, 3-Leiter 1 Kontaktausgang: DC PNP, max. 200 mA Messbereich 2: 0…100°C Analogausgang: 4…20 mA, 3-Leiter Fühlerlänge: 50 mm, 1.4404 Prozeßanschluß: G1/2″, 1.4404 Prozeßdichtung: EPDM-Kautschuk Hilfsspannung: 24V DC (10…30V) Nr. |
| 100% Germany Origin | Euchner Vietnam | Article: CET4-AR-CRA-CH-50X-SG-111684 Order no.: 111684 SAFETY SWITCH |
| 100% Germany Origin | Euchner Vietnam | Article: MGB-L1H-ARA-R-105782 Order no.: 105782 MULTIFUNCTIONAL GATE BOX COMPLETE |
| 100% Germany Origin | Euchner Vietnam | Article: CET-A-BWK-50X Order no.: 096327 ACTUATOR |
