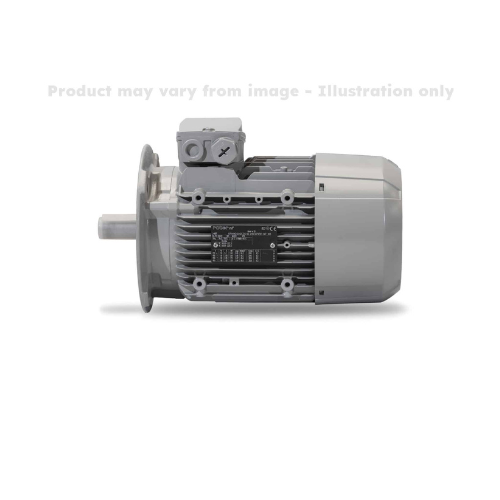

0373 238 670Động cơ 6RN90S04E30U24@3041 ROTOR NL Việt Nam
Mô tả động cơ
Động cơ IEC điện áp thấp đa dụng 1,1 kW IE3 1445 vòng/phút, 3 pha, 4 cực, D230/Y400V 50Hz, 90S Khung B5, IC411
Information
| Model | 6RN |
|---|---|
| Mounting | B5 |
| Frame IEC | 90 |
| Output (kW) | 1.1 |
| Voltage 50Hz | D230/Y400V 50Hz |
| Voltage 60Hz | D265/Y460V 60Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 4 |
| # of phases | 3 |
| Eff.class IEC | IE3 |
| Eff% IEC | 84.1 |
| Inom (A) | 4.22 |
| Power factor | 0.78 |
| Speed (rpm) | 1445 |
| Bearing DE | 6205-2Z/C3WT (-40°C/+160°C) |
| Bearing NDE |
6004-2Z/C3WT (-40°C/+160°C) |
LIST CODE
| 100% USA Origin | Temposonics/MTS Vietnam | Code: LPR1A1B15G0XFI3M00960S Liquid Level Transmitter MRA1A1B15G0M00960S is no longer Note: Recheck delivery time before order |
| 100% USA Origin | Temposonics/MTS Vietnam | Code: 251469-2 (ACP) Float 3.50 In Product Note: Recheck delivery time before order |
| 100% Japan Origin | ITOH DENKI Vietnam | Model: CB-016N6 Driver Card/ Controller |
| 100% Japan Origin | ITOH DENKI Vietnam | Model: PM500FE-17-590-D-024-JD Power Roller |
| 100% EU Origin | Ross Control Vietnam | Model: D2174B3917 Valve Description: 3/2 Directional Control Valve – Normally Open – Solenoid Pilot Operated – Internal Pilot Supply |
| 100% USA Origin | Temposonics/MTS Vietnam | Code: 253419 Magnetschlitten “I” für EP/RP Note: Recheck delivery time before order |
| 100% EU/China Origin |
Danfoss Vietnam |
PN: 136G8768 Model : MCD60108BT5S1X20CV2 Soft Starter (MCD5-0105B-T5-G1X-20-CV2 ngừng sx) Note : recheck CODE+STOCK khi order |
| 100% Japan Origin | KOSHIN Vietnam | Model: HC4-4J Brake |
| 100% Japan Origin | KOSHIN Vietnam | Model: HC5-5J Brake |
| 100% Japan Origin | Shimpo Vietnam | Model: DTMB-5C Digital Tension Meter |
