0373 238 670Công tắc an toàn TP3-2131A024MC1743 Euchner
Việt Nam

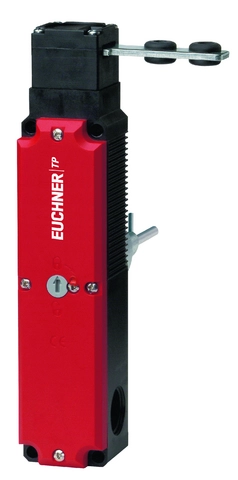

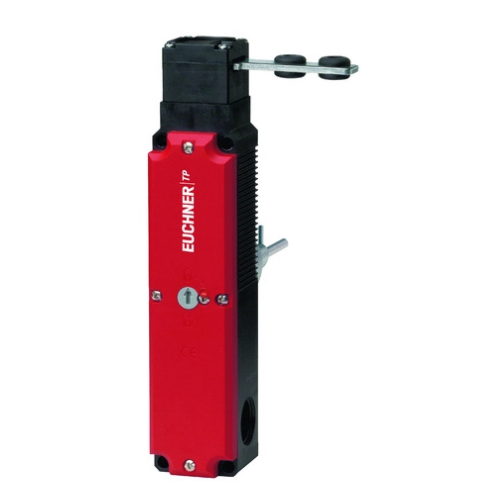

Công tắc an toàn TP, đầu vào cáp M20 x 1,5, tiếp điểm cho vị trí cửa, nút thoát hiểm
- 3 x đầu vào cáp M20 x 1,5
- Tiếp điểm cho vị trí cửa
- Phát hành phụ trợ
- Thoát hiểm, ngắn
- Nguyên lý dòng điện mạch kín
Electrical connection values
| Power consumption | 8 W |
| Connection cross section | 0.34 … 1.5 mm² |
| Rated insulation voltage Ui | 50 V |
| Rated impulse voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 4 A 50 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% … +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
LIST CODE
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Aqua-Boy TEMI Textiles Moisture Meter |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Surface Electrode Holder (213) Sensor Aqua-Boy Surface Electrode Head 50 x 40mm (213) |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Knife Electrode (210) Sensor Aqua-Boy Knife Electrode 110mm (210) |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Aqua-Boy Universal Measuring Cable (200) Aqua-Boy Universal Measuring Cable (200) |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Aqua-Boy – Universal Electrode Holder (204) Aqua-Boy – Universal Electrode Holder (204) |
| 100% Germany Origin | Hans-schmidt Vietnam | Model: DX2-400-M Tension Meter |
| 100% EU Origin | E+H Vietnam | Code: RSG45-AA1CCAAAB1B6+ADMA Memograph M RSG45 Data Manager Description: Advanced Data Manager |
| 100% Japan Origin | Tekhne Vietnam | Model: TK-100 NK-I Portable hygrometer |
| 100% EU/ Germany Origin | Balluff Vietnam | BTL1TRL BTL7-E500-M0500-B-DEXB-KA10 Magnetostrictive Sensors BTL0HU0 (BTL5-E10-M0500-B-DEXB-KA10) is obsolete |
| 100% EU/ Hungary Origin | Balluff Vietnam | BES00AZ BES M30MM-PSC30F-S04K Inductive Sensors |
| 100% France Origin | Celduc Vietnam | Code: SOB942660 Digital Relays Solid State Relays |
| 100% US Origin | ROLFES BOONE Vietnam | Model: TMR-160 TM Belt Alignment Sensor – 160 degree 5″ x 1″ half round brass friction bar with Teflon insulator, thermostat, mounting plate, and 10′ of stainless overbraided duplex |
