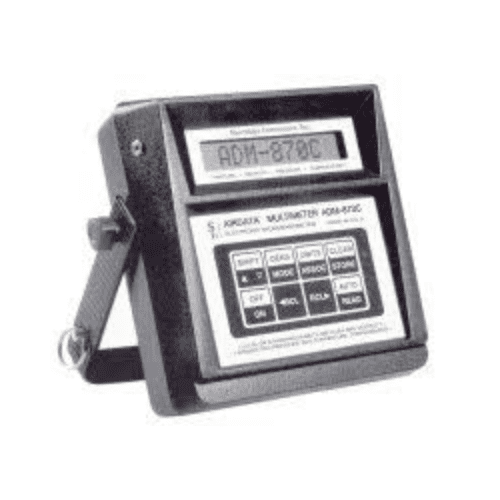

ADM-870C MULTIMETER Shortridge Instruments VietNam

Giới thiệu chung

ADM-870C được thiết kế cho các ứng dụng cân bằng gió và phân phối không khí có yêu cầu cao, cho phép đo đồng thời lưu lượng gió, vận tốc gió, áp suất và nhiệt độ.
Thiết bị tích hợp cổng truyền thông RS-232 để xuất dữ liệu sang máy tính hoặc máy in, phục vụ lưu trữ và phân tích.

Thông số kỹ thuật chính

• Chức năng đo:

  • Vận tốc gió

  • Lưu lượng gió

  • Áp suất vi sai

  • Áp suất tuyệt đối

  • Nhiệt độ

• Độ chính xác:

  • Vận tốc gió: ±3% giá trị đo

  • Áp suất vi sai: ±2% giá trị đo

  • Nhiệt độ: ±0,5°F

• Dải vận tốc gió (pitot):

  • 50 – 8.000 fpm (tối đa 30.000 fpm)

• Dải áp suất vi sai:

  • 0,0001 – 60 in.WC

• Bộ nhớ:

  • Lưu trữ khoảng 200 phép đo, có tính trung bình, min/max

Đặc điểm nổi bật

• Độ chính xác cấp phòng thí nghiệm.

• Tự động bù mật độ không khí theo áp suất và nhiệt độ.

• Chức năng ghi nhớ và tính trung bình số liệu.

• Có thể kết hợp với FlowHood 8400 để đo lưu lượng trực tiếp.

• Thiết kế cầm tay, phù hợp đo hiện trường

LIST CODE

1.  Code: AV56A1KFX6YXGP50

Replaces part number AV56A1TFX1YXG007

THIN-LINE™ III Heavy Mill Duty Magnetic Modular Encoder 4.5″” C-Face Mount

Housing Type: 1 – Single Output

Rotor Bore Size: KF – 1 1/8″” Thru-Shaft Cam Screw Rotor for Wolong/GE Pitch Motor

Cover Style : X – No Cover Plate

Line Driver: 6 – 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no A/,B/,Z/)

Left Output PPR: Y – 1024 PPR

Right Output PPR: X – No Right Output, Single Output Only

Connector Options: G – Ind’l w/Northstar Pinout (EPIC Style connector), w/mating plug, LED diagnostics

Modifications: P50 – Special options for GE Motor, upgraded model including diagnostic LED & cam screw rotor and super magnetic shielding “

2.  Code: AV6AS4B23QA2A000

AV6A Solid Shaft Optical Light Mill Duty Absolute Encoder

Communication Bus

S – SSI Communication

Flange

4 – 2.5 in. Square flange, 1.25 in. male pilot

Shaft Size

B – 3/8 inch x 5/8 inch long Solid Shaft, w/flat (flange #4 only)

Turns/bits/MT

2 – 4096 Turns/12 bits

CPR/bits Per Turn/ST

3 – 8192 Counts per Revolution/13 bits

Connector

Q – M23/12 pin w/o Plug, Kubler Pin Out

Connector Exit

A – Side/Radial exit

Output Coding

2 – Gray Coding

IP Rating

A – IP65 Shaft Seals

Modifications

000 – No Special Features “

3.  Code: HS35MYX6CPU1CA00

HS35M Hollow Shaft Magnetic Mill Duty Encoder

Left Output PPR: Y – 1024 PPR

Right Output PPR : X – No Right Output

Line Driver: 6 – 5-28v In/Out (7272)

Hollow Shaft Bore Size: C – 5/8 in. via insert

Connector Options: P – 10 Pin Mini-Epic Style with Plug

Mounting: U – Universal (Thru & End of Shaft)

Protection: 1 – Protective Basket Included Anti-Rotational Tether: C – 0.375 16 T-Bolt Fan Cover Tether

Channels and Modifications: A00 – Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\ “

4.  Code: HS35MYX6CPU1HA00

HS35M Hollow Shaft Magnetic Mill Duty Encoder

Left Output PPR

Y – 1024 PPR

Right Output PPR

X – No Right Output

Line Driver

6 – 5-24v In/Out (7272)

Hollow Shaft Bore Size

C – 5/8 in. via insert

Connector Options

P – 10 Pin Mini-Epic Style with Plug

Mounting

U – Universal (Thru & End of Shaft)

Protection

1 – Protective Basket Included

Anti-Rotational Tether

H – A and F Tether Kits

Channels and Modifications

A00 – Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\

HS35MYX6CPU1HA00 Replaces part number HS35MYX6HPU1HA00 “

5.  Code: HS35MYX6FCU0XA00

HS35M Hollow Shaft Magnetic Mill Duty Encoder  Left Output PPR

Y – 1024 PPR

Right Output PPR

X – No Right Output

Line Driver

6 – 5-24v In/Out (7272)

Hollow Shaft Bore Size

F – 1 in. (Native Bore)

Connector Options

C – 10 Pin MS Style with Plug, Avtron/BEI Phasing

Mounting

U – Universal (Thru & End of Shaft)

Protection

0 – No Protective Basket

Anti-Rotational Tether

X – No Tether Hardware

Channels and Modifications

A00 – Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\ “

6.  Code: HS35MYX6FCU1HA00

HS35M Hollow Shaft Magnetic Mill Duty Encoder

Left Output PPR

Y – 1024 PPR

Right Output PPR

X – No Right Output

Line Driver

6 – 5-24v In/Out (7272)

Hollow Shaft Bore Size

F – 1 in. (Native Bore)

Connector Options

C – 10 Pin MS Style with Plug, Avtron/BEI Pin Out

Mounting

U – Universal (Thru & End of Shaft)

Protection

1 – Protective Basket Included

Anti-Rotational Tether

H – A and F Tether Kits

Channels and Modifications

A00 – Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\

HS35MYX6FCU1HA00 Replaces part number RA35MY6FCU1HA00 “

7.  Code: HS35MYX8FPU1CA00

HS35M Hollow Shaft Magnetic Mill Duty Encoder

Left Output PPR : Y – 1024 PPR

Right Output PPR : X – No Right Output

Line Driver : 8 – 5-24v In/Out (HX)

Hollow Shaft Bore Size : F – 1 in. (Native Bore)

Connector Options : P – 10 Pin Mini-Epic Style with Plug

Mounting: U – Universal (Thru & End of Shaft)

Protection: 1 – Protective Basket Included Anti-Rotational Tether: C – 0.375 16 T-Bolt Fan Cover Tether

Channels and Modifications: A00 – Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\ “

8.  Code: M6-4S2HX51-W003

M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1

Hollow Shaft Bore Size : 4 – 1 inch Hollow Shaft

Mounting : S – Standard End-of-Shaft Mounting

Line Driver : 8 – 5-24V In/Out Protected Line Driver

Left Output : H – High Res.

Right Output : X – No Right Output

Base PPR: 51 – 512 PPR

Marker :  – – No Marker

Connector Options : W – Terminal with Cable Gland

Modifications:  003 – Includes B28390 Torque Arm Kit “

9.  Code: M6C-4S1HX51-W003

M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1

Hollow Shaft Bore Size : 4 – 1 inch Hollow Shaft

Mounting : S – Standard End-of-Shaft Mounting

Line Driver : 8 – 5-24V In/Out Protected Line Driver

Left Output : H – High Res.

Right Output : X – No Right Output

Base PPR: 51 – 512 PPR

Marker :  – – No Marker

Connector Options : W – Terminal with Cable Gland

Modifications:  003 – Includes B28390 Torque Arm Kit

M6C-4S1HX51-W003 Replaces the obsolete M6-4S1HX51-W003 “

10.  Code: M6C-4S8HX51-W003

DESCRIPTION: M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1

Hollow Shaft Bore Size: 4 – 1 inch Hollow Shaft

Mounting: S – Standard End-of-Shaft Mounting

Line Driver: 8 – 5-24V In/Out Protected Line Driver

Left Output: H – High Res

Right Output: X – No Right Output

Base PPR : 51 – 512 PPR

Marker: – – No Marker

Connector Options: W – Terminal with Cable Gland

Modifications: 003 – Includes B28390 Torque Arm Kit “

11.  Code: M6C-5S8XH51-T003

M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1

Hollow Shaft Bore Size : 5 – 1-1/8 inch Hollow Shaft

Mounting : S – Standard End-of-Shaft Mounting

Line Driver : 8 – 5-24V In/Out Protected Line Driver

Left Output : X – No Left Output

Right Output : H – High Res.

Base PPR : 51 – 512 PPR

Marker : – – No Marker

Connector Options: T – Terminal Block

Modifications : 003 – Includes B28390 Torque Arm Kit

**Replacement for the obsolete M6-5S3XH51-T003…..Please confirm before ordering…”

12.  Code: M6C-5S8XH51-T005

M6C Flameproof Explosion Protected Encoder, ATEX/IECEx Zone 1

Hollow Shaft Bore Size : 5 – 1-1/8 inch Hollow Shaft

Mounting : S – Standard End-of-Shaft Mounting

Line Driver : 8 – 5-24V In/Out Protected Line Driver

Left Output : X – No Left Output

Right Output : H – High Res.

Base PPR : 51 – 512 PPR

Marker : – – No Marker

Connector Options: T – Terminal Block

Modifications : 005 – -40C Tested Unit with Torque Arm Kit Included “
