FMS Tension Control / Force Sensors

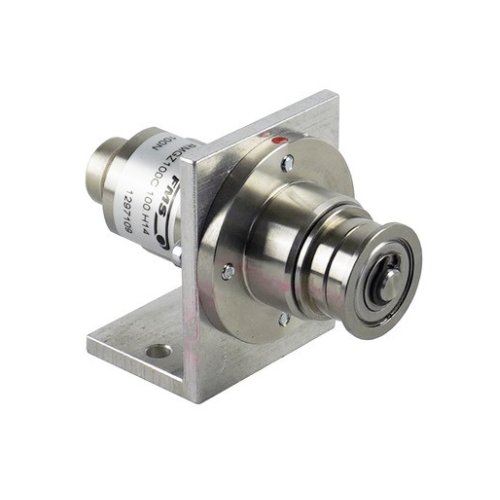

RMGZ100C-Series Compact force sensor for pulley
General technical details
| Sensitivity | 1,8 mV/V |
|---|---|
| Tolerance of sensitivity | <± 0,2 % |
| Accuracy class | ± 0,5 % |
| Temperature coefficient | ± 0,1 %/10K |
| Temperature range | -10 to 60 °C (14 to 140 F) |
| Input resistance | 350 Ω |
| Power supply | 1 to 10 VDC |
| Overload protection rating | 10 times nominal force |
| Material main body | Stainless steel |
| Protection class | IP 42 |
| Electrical connection | Male connector M16x0.75, 5-pole |
| Repeatability error | 0.05% |
| Measuring range | 30:1 |
LIST CODE
| 100% Germany Origin | Euchner Vietnam | Article: AC-SC-M23F12G-167890 Connector Order no.: 167890 Plug connector Note: RC-12S1N1223ZZ (ORDER NO. 073290) is not active anymore, below is an alternative product |
| 100% Germany Origin | Euchner Vietnam | Article: RC-12P1N8A8096 Connector Order no.: 073294 Plug connector |
| 100% Germany Origin | Euchner Vietnam | Article: HALTER ZSM Order no.: 102969 SWITCH BRACKET |
| 100% Germany Origin | Euchner Vietnam | Article: ZSM4200-121883 Order no.: 121883 ENABLING PUSHBUTTON |
| 100% Finland Origin | Vaisala Vietnam | HMK15 B0000B1AB Humidity Calibrator Salt Chamber: Three salt chambers with basic lids Ion Exchanged Water for HMK15 Carrying Bag KCl Salt (85 %RH) for One Chamber English User Guide for HMK15 |
| 100% Finland Origin | Vaisala Vietnam | 271550 Probes Sensor HMK15 universal lid for Ø12, 13.5, and 18.5 mm probes |
| 100% Finland Origin | Vaisala Vietnam | 19767HM Ion Exchanged Water for HMK15 |
| 100% Finland Origin | Vaisala Vietnam | 271549 HMK15 basic lid with four measurement holes |
| 100% Finland Origin | Vaisala Vietnam | 253277SP HMK15 chamber lid with custom cover for 4 x HMP110 with filter |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: AQUA BOY LMI Leather Moisture Meter |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Aqua-Boy PMII Paper, Cardboard Moisture Meter |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Aqua-Boy TEMI Textiles Moisture Meter |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Surface Electrode Holder (213) Sensor Aqua-Boy Surface Electrode Head 50 x 40mm (213) |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Knife Electrode (210) Sensor Aqua-Boy Knife Electrode 110mm (210) |
| 100% UK/Germany Origin | KPM Aquaboy Vietnam |
Model: Aqua-Boy Universal Measuring Cable (200) Aqua-Boy Universal Measuring Cable (200) |
